Specification

IMO no. 9136125
Call sign V2QS5
MMSI 304354000
Flag Antigua & Barbuda
Port of registry St. John´s
Class RINA
P&I EF Marine
Built 1996 / Sheepswerven Bodewes B.V., Hoogezand, NL
Ice-class Swedish / Finnish 2
Main engine STORK 1840 KW
Speed 9,50-10,00 knots
Bowthruster fitted yes
DWAT 4.264 mt
DWCC summer 4.000 mt
DWCC winter 3.900 mt
GT 2.848
NT 1.601
Length over all 90,46 m
Breadth over all 13,20 m
Moulded depth 7,30 m
Max. draft SSW 5,75 m
Airdraft in ballast 27,10 m
Distance WLTHC 5,95 m
Immersion 10,80 t/cm
No. of holds / hatches 1 hold / 1 hatches

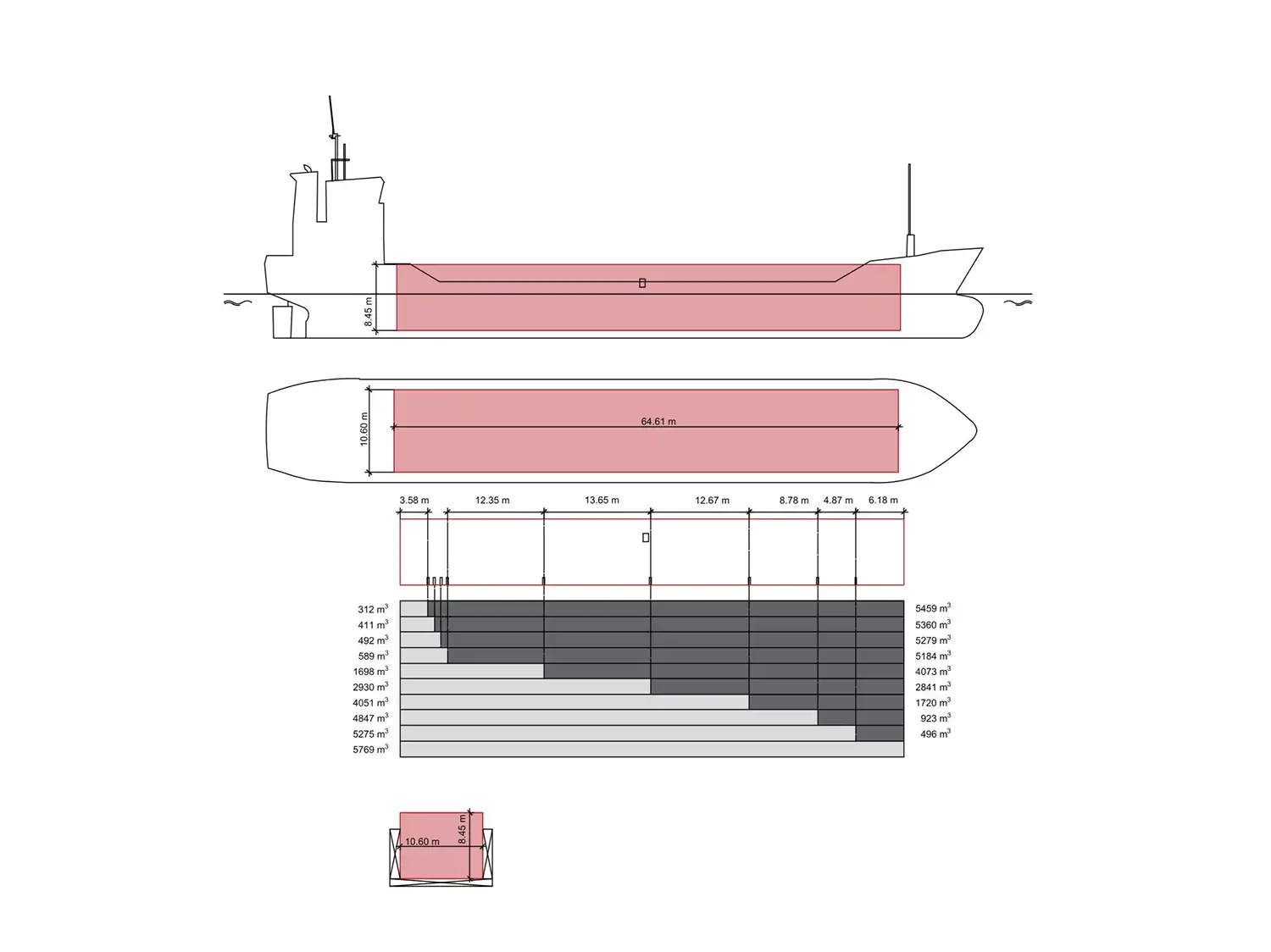

Hold capacity 5.798 cbm / 203.000 bft
Hold dimensions (LxWxH) 64,61 m x 10,60 m x 8,45 m
Hatch dimensions (LxW) 64,61 m x 10,60 m
Tank top / hatch cover strength 15,00 t per m² / 1,60 t per m²
No. of bulkheads 1 bulkhead (movable on 6 positions)
Strongbeam yes
Cement holes yes
